Automatic pool cleaner Dolphin Active X4
ref: 07LAE500902 ean13: 8410189058761 sku: 500902
- Dolphin Active X4
- Cleaning: bottom, walls and waterline
- 2.5 h cycle
- Double level filtration
- Double traction motor
- Gyroscopic scanning system
- Triple active brushing
- NEW iOT SOURCE
- Swivel system
- MyDolphin App
- Warranty: 3 years
€1,175.00
Free shipping
Technical characteristics
Robot cleaner Dolphin Active X4
Maytronics electric pool cleaners offer advanced cleaning technology, long-lasting performance and easy maintenance.

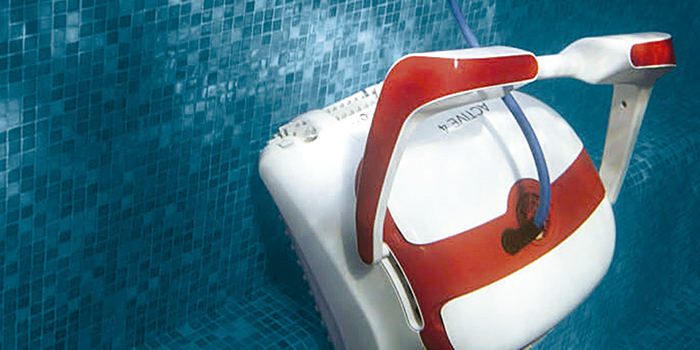

The Dolphin Active X4 pool cleaner provides reliable, convenient and cost-effective pool cleaning. Its reliable filtration method in all pool conditions and active brushing on all surfaces optimises pool hygiene.
why buy an electric pool cleaner Dolphin?
sAVE EFFORT! SAVE TIME! Electric pool cleaners are totally independent and easy to use. The only worry will be to throw it into the pool and pick it up to clean the filter once it has finished its cleaning cycle. With this pool cleaner Dolphin, enjoy a cleaner and easier to maintain pool. In addition, with this type of pool cleaner, no water is wasted and there is no need to wash the sand filter.
Gyro system
The Active X4 uses advanced navigation software with a gyroscopic scanning system. This allows the robot to accurately scan the size of your pool, ensuring optimal coverage and efficient cleaning.
Active cleaning
The Dolphin Active X4 comes with one active brush on the front and one on the back. In addition, both brushes are equipped with two PVA rings that ensure a better grip and a more demanding cleaning of the pool.
Dual traction motors
The equipment is equipped with two traction motors to improve manoeuvrability in the water and ensure optimum coverage of the pool regardless of shape, slope and obstacles.
IOT power supply
The Dolphin Active X4 pool cleaner features the new iOT Always Connected power supply. You can control the equipment from your Smartphone with the MyDolphin App. It allows remote diagnostics and software updates of the power supply and the robot. It also has a weekly programmer.
Triple brushing
The Dolphin Active X4 robot pool cleaner has a third brush on the bottom to help provide even more cleaning power.
Type of cleaning
The Dolphin Active X4 robot pool cleaner is specially designed to clean the bottom, walls and waterline of the pool.
Cleaning cycle
Cleaning cycle of 2.5 hours, which is more than enough time to efficiently clean any type of pool.
Double level filtration
Dual level panel filtration system ensures cleanliness of even the smallest particles.
Includes ultra-fine panels and spring panels. Top access.
MyDolphin App
With the Bluetooth technology MyDolphin App you can manually navigate the robot and view information.
Cable length
The cable length of the Active X4 is 18 metres. This cable length is recommended for in-ground and above-ground pools up to 12 metres in length.
Swivel system
The Active X4 robot incorporates a cable swivel system. The swivel system is a rotating pivot on a section of the cable that prevents the cable from becoming coiled up as the cleaner moves around the pool.
Dolphin Premium Service
Official After-Sales Service to resolve any doubts about the operation of the robot, with priority repairs including collection and delivery to your home.
Guarantee
The DOLPHIN ACTIVE X4 pool cleaner comes with a 3-year guarantee.
* The correct operation of the equipment cannot be guaranteed both on the bottom and on the rise of the walls as long as the pH level is not correct, there is algae or the filters are clogged by excess dust, and the pool has not been previously completely cleaned. No pool cleaner will clean steps and benches properly.
* The cleaning of right angles and corners cannot be 100% guaranteed due to the complexity of access to these areas. In liner pools, 100% cleaning cannot be guaranteed in the overlaps of the liner itself.
If you need more information about this equipment or any other pool cleaner Dolphin, please do not hesitate to contact us.
 |  |  |  |  |  | |
| ACTIVE X3 | ACTIVE CLASSIC | ACTIVE X4 | ACTIVE X5 | ACTIVE X5 LIBERTY | ACTIVE X6 | |
| FUND | Yes | Yes | Yes | Yes | Yes | Yes |
| WALLS | No | Yes | Yes | Yes | Yes | Yes |
| WATERLINE | No | Yes | Yes | Yes | Yes | Yes |
| SURFACES | Gresite, concrete, liner, polyester | Gresite, concrete, liner, polyester | Gresite, concrete, liner, polyester | Gresite, concrete, liner, polyester | Gresite, concrete, liner, polyester | Gresite, concrete, liner, polyester |
| ACTIVE BRUSHES | 1 front + 1 rear | 1 front + 1 rear | 1 front + 1 rear | 1 front1 + 1 rear | 1 front + 1 rear | 1 front + 1 rear |
| FILTRATION SYSTEM | Ultra-fine filter and spring | Ultra-fine filter and spring | Ultra-fine filter and spring | Ultra-fine filter and spring | Ultra-fine filter and spring | Multilayer basket |
| SUCTION VOLUME FLOW | m/h | m/h | 17 m/h | m/h | m/h | m/h |
| FILTER ACCESS | Top | Top | Top | Top | Top | Top |
| CLEANING CYCLES | 1 | 1 | 1 | |||
| DURATION OF THE CYCLE | 3 hours | 2.5 hours | 2.5 hours | 1'5 / 2'5 / 3'5 hours | 1 / 1'25 / 1'5 hours | 1.5 / 2 / 2.5 hours |
| SWIVEL | Yes | Yes | Yes | Yes | Yes | Yes |
| CABLE LENGTH | 18 metres | 18 metres | 18 metres | 18 metres | Wireless | 18 metres |
| ENGINE BLOCK | 24 V DC | 24 V DC | 24 V DC | 24 V DC | 24 V DC | 24 V DC |
| POWER SUPPLY | Low power consumption (220 V AC) | Low power consumption (220 V AC) | Source iOT | Source iOT | Low power consumption (220 V AC) | Source IoT |
| REMOTE CONTROL | No | No | No | Yes | Yes | Yes, with MyDolphin App |
| TRANSPORT TROLLEY | Stand (without wheels) | Yes | No | Yes | Yes | Yes |
| MAXIMUM POOL LENGTH | 10 metres | 10 metres | 12 metres | 12 metres | 15 metres | 15 metres |
| App My Dolphin | No | No | Yes | Yes | Yes | Yes |
| GUARANTEE | 2 years | 2 years | 3 years | 3 years | 3 years | 3 years |
Data Sheet
- Type of cleaning
- Bottom, walls and waterline
- Remote control
- Yes, via App
- Trolley
- No
- Filter type
- Cassette
- No. of engines
- 3
- Cable anti-twist
- Yes
- Programmable
- Yes
- Type of cleaner
- Electric
- Batería
- No
- Filtración progresiva de doble nivel
- Sí
- Capacidad de filtración
- 15 micras
