Zodiac Vortex OV 5200 4WD pool cleaner robot
ref: 07LAEWR000223 ean13: 9317545271552 sku: WR000223
- Cleaner Zodiac OV 5200 4WD.
- For pools up to 12 x 6 meters.
- Cleans bottom, walls and waterline.
- The all-rounder thanks to its four-wheel drive.
- Two cleaning cycles:
- bottom only
- bottom, walls and waterline - Top access to the filter for greater comfort and easy cleaning.
- Includes transport trolley.
- Warranty: 3 YEARS.
€999.00
Free shipping
Technical characteristics
* sending a photo of the old robot
Cleaner Zodiac OV 5200 4WD

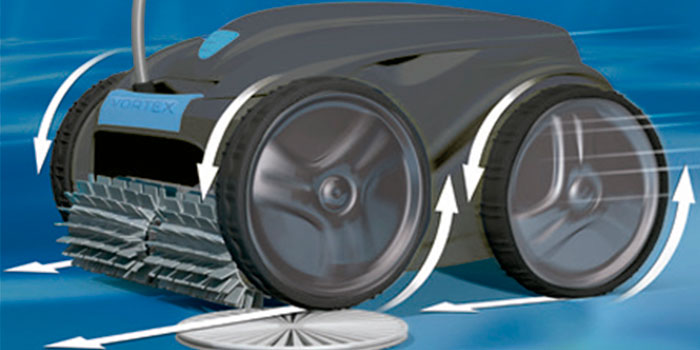

This robot pool cleaner Zodiac is perfect for the maintenance of private in-ground pools up to 12 x 6 m; you can use it regardless of the shape of your pool thanks to its exceptional design that allows the cleaning of rectangular, oval, round and free-form pools. For flat bottom, gentle slope, compound slope, diamond tip.
All-terrain pool cleaners
Its 4 drive wheels ensure that the OV 5200 pool cleaner adheres perfectly to the pool walls.
It adapts to all types of lining and overcomes obstacles more easily.

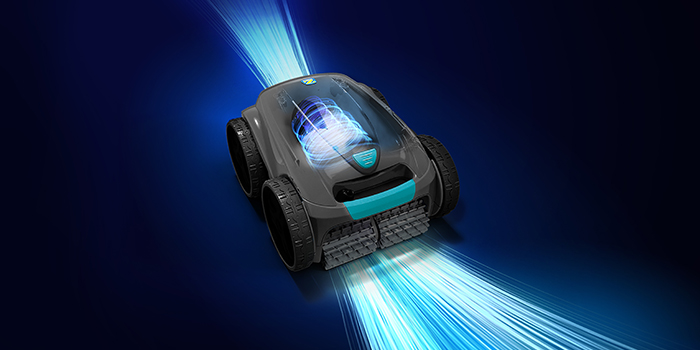

Cyclonic suction
The engineers at Zodiac have pioneered the implementation of cyclonic suction in their pool cleaners.
The cyclonic suction technology consists of creating a powerful vortex inside the filter, which keeps the dirt in suspension, preventing it from sticking to the walls of the filter and clogging it, thus maintaining cleaning performance.
Extra large suction capacity
The OV 5200 pool cleaner guarantees perfect cleaning on a large scale.
Thanks to its extra-wide suction nozzle and 5-litre capacity filter, the cleaner can vacuum and store all types of debris with maximum ease of use. In addition, it maintains suction power throughout the entire cycle.
Versatility
The equipment adapts easily to pools of different shapes and with any liner. Ideal for pools up to 12 x 6 metres.
Type of cleaning
The ZODIAC OV 5200 4WD has the ability to efficiently clean the bottom, walls and waterline.
Cleaning cycles
Two cleaning modes:
- Bottom only
- Bottom, walls and waterline

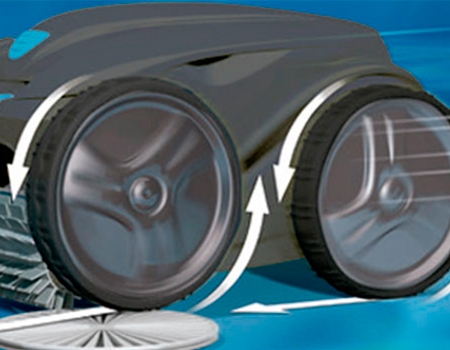

All-rounder
Its 4 drive wheels give the OV 5200 4WD pool cleaner perfect adherence to the pool walls. It adapts to all types of lining and overcomes obstacles more easily.

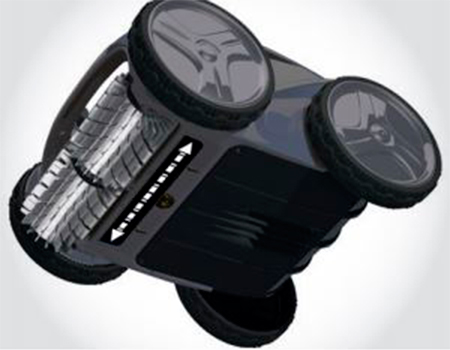

High suction capacity
The ZODIAC OV 5200 4WD has an extra wide suction nozzle, which allows for a higher suction capacity.

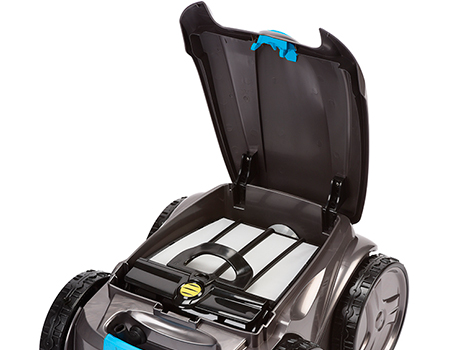

Top access to the filter
The filter is accessible from the top, which simplifies its use and handling. The filter has a capacity of 5 litres.
Guarantee
The ZODIAC OV 5200 4WD pool cleaner comes with a 3 year warranty.
* The correct operation of the equipment cannot be guaranteed both on the bottom and on the rise of the walls as long as the pH level is not correct, there is slime or algae or the filters are clogged by excess dust, and the pool has not been previously completely cleaned. No pool cleaner will clean steps and benches properly.
* The cleaning of right angles and corners cannot be 100% guaranteed due to the complexity of access to these areas. In liner pools, 100% cleaning cannot be guaranteed in the overlaps of the liner itself.
If you need more information about this equipment or any other pool cleaner Zodiac, please do not hesitate to contact us.
 |  |  | |
| OV 5200 4WD | OV 5300 4WD | OV 5480 iQ | |
| BACKGROUND | Yes | Yes | Yes |
| WALLS | Yes | Yes | Yes |
| WATERLINE | Yes | Yes | Yes |
| SURFACES | Gresite, concrete, liner, polyester | Gresite, concrete, liner, polyester | Gresite, concrete, liner, polyester |
| ACTIVE BRUSHES | 2 front | 2 front | 2 front |
| DRIVE | 4WD - 4 wheel drive | 4WD - 4 wheel drive | 4WD - 4 wheels |
| FILTRATION SYSTEM | Rigid filter 100 μ | Rigid filter 100 μ | Rigidfilter 100 μ |
| FILTER CAPACITY | 5 litres | 5 litres | 5 litres |
| FILTER ACCESS | Upper | Superior | Superior |
| FILTER FULL INDICATOR | Yes | Yes | Yes |
| CLEANING CYCLES | 2 (1 bottom only and 1 bottom, walls and waterline) | 2 (1 bottom only and 1 bottom, walls and waterline) | Multiple (bottom only and bottom, walls and waterline) |
| CYCLE LENGTH | 1.5 / 2.5 hours | 1.5 / 2.5 hours | Multiples from 0.5 to 3.30 hours |
| SWIVEL | No | Yes | Yes |
| LIFT SYSTEM | No | No | Yes |
| CABLE LENGTH | 18 metres | 18 metres | 18 metres |
| NO. OF MOTORS | 3 | 3 | 3 |
| App iAqualink | No | No | Yes |
| TRANSPORT TROLLEY | Yes | Yes | Yes |
| WEIGHT | 9,5 kg | 9,5 kg | 9,5 kg |
| MAXIMUM POOL LENGTH | 12 metres | 12 metres | 12 metres |
| SAFETY | Beach system, automatic out-of-water stop | Beach system, automatic stop out of water | Beach system, automatic stop out of water |
| WARRANTY | 3 years | 3 years | 3 years |
Data Sheet
- Type of cleaning
- Bottom, walls and waterline
- Remote control
- No
- Trolley
- Yes
- Filter type
- Cartridge
- No. of engines
- 3
- Cable anti-twist
- No
- Programmable
- Yes
- Type of cleaner
- Electric
- Batería
- No
- Filtración progresiva de doble nivel
- No
- Capacidad de filtración
- 100 micras
